Application
It is primarily applicable to precast concrete panels, precast panels for nuclear power plant cooling towers, and precast concrete panels for modular housing assembly.
Steel Bars
Fine-Rolled Threaded Steel Bar
Continuous-thread steel bar for prestressing, structural connection, anchoring and geotechnical reinforcement.
PRODUCT OVERVIEW

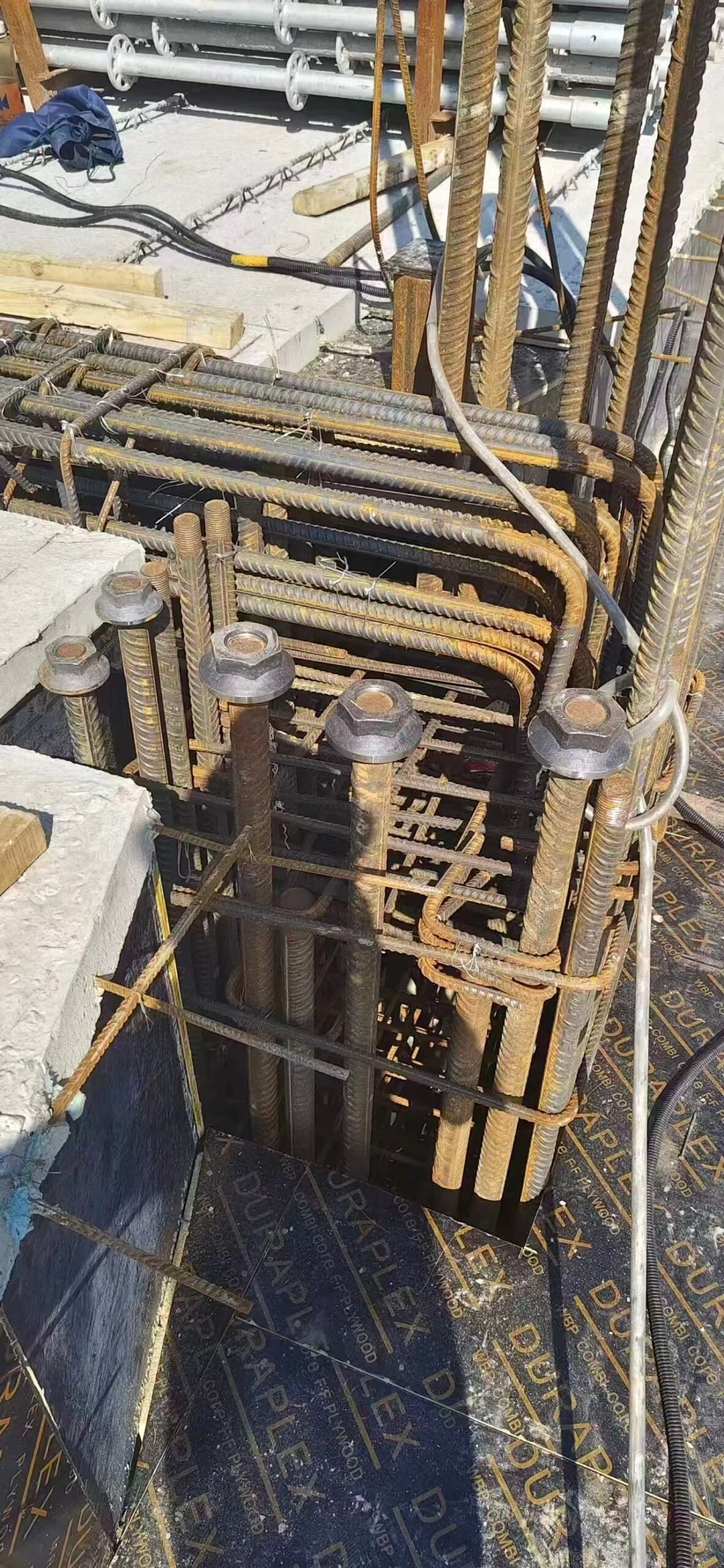

Rebar anchorage plate nut
Used to reduce the need for bent reinforcing bars between cement panels; direct splicing and anchoring help lower costs.
Configuration
Threaded rebar, lifting anchors, threaded rebar couplers
Specification
The standard specifications are: #12, #14, #16, #18, #20, #22, #25, #28, #32, #36, #40, #50, #65.
Supply format
Cut length, surface condition, packing and marking confirmed for each order.
PRODUCT INFORMATION
Product description
Used to reduce the need for bent reinforcing bars between cement panels; direct splicing and anchoring help lower costs.
The supplied configuration should be selected together with the compatible nut, coupler, plate, anchorage and other required components. Selection is based on the approved drawing, applicable project specification and intended construction method.
APPLICATION SCOPE
Typical application scope
It is primarily applicable to precast concrete panels, precast panels for nuclear power plant cooling towers, and precast concrete panels for modular housing assembly.
- Foundation and underground engineering
- Bridge and structural prestressing work
- Slope support and geotechnical reinforcement
- Project-specific connection and anchoring assemblies
TECHNICAL DATA
Specification & technical data
| Product classification | Guide Caps |
|---|---|
| Material / grade | Confirm against the approved order specification |
| Diameter / size | Select from the approved product range |
| Matched components | Confirm together with the selected product system |
| Inspection documents | Agree required documents before order |
| Packing & marking | Confirm according to product format and delivery plan |
No unverified mechanical value, certification or performance claim is published on this approval page. Request the current approved product chart and documents for your project.
INSTALLATION WORKFLOW
Installation & use workflow
- Confirm the structural or geotechnical design, product model and matched components.
- Inspect product identification, quantity and visible condition before installation.
- Install in accordance with the approved construction method and project requirements.
- Apply only the specified assembly, tightening, tensioning or grouting procedure.
- Complete the required inspection and installation records before acceptance.
Direct helical anchoring based on actual application scenarios
PROJECT SUPPORT
Need a matched quotation?
Send the product name, drawing, specification, quantity, destination and required documents.
Get a QuoteOnline ConsultationProduct specifications may vary by project and destination. Always confirm the current data sheet and key parameters before ordering.
