PRODUCT OVERVIEW
Bearing plate for high-strength threaded steel bars
Steel bearing plates are used in conjunction with anchorage assemblies for high-strength threaded steel bars to reinforce the nut; they are typically made of Q235 steel and can be customized according to drawing specifications.
Configuration
Geometry and connection matched to the confirmed assembly.
Specification
Material and dimensions to be produced against approved requirements.
Supply format
Cut length, surface condition, packing and marking confirmed for each order.
PRODUCT INFORMATION
Product description
The high-strength threaded steel bar bearing plate is used with anchorage assemblies to reinforce the nut bearing area. It is normally manufactured from Q235 steel and can be customized to approved drawings.
The supplied configuration should be selected together with the compatible nut, coupler, plate, anchorage and other required components. Selection is based on the approved drawing, applicable project specification and intended construction method.
APPLICATION SCOPE
Typical application scope

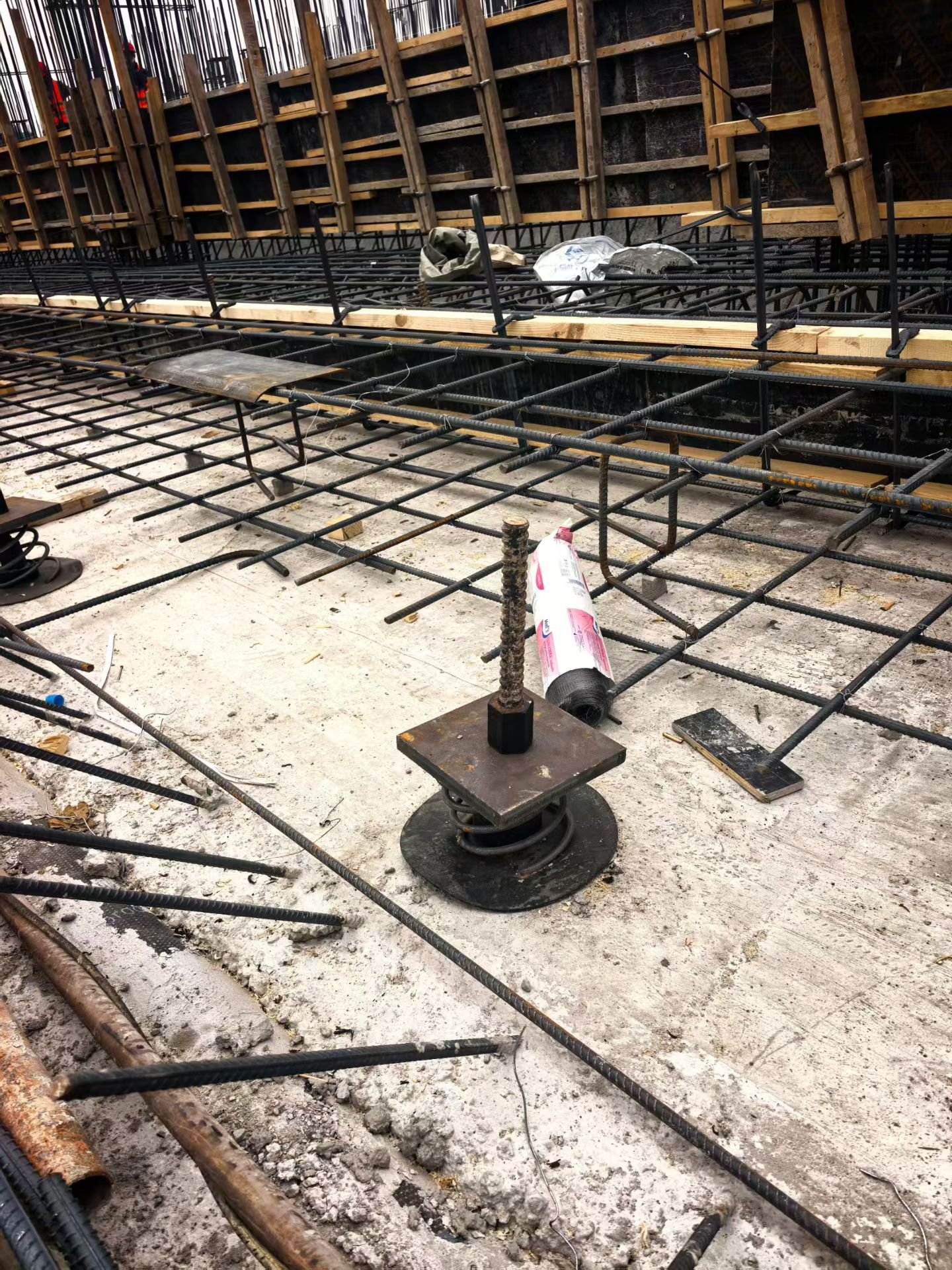

Transfers anchorage force and reinforces the nut bearing area in approved prestressing and anchoring assemblies.
- Foundation and underground engineering
- Bridge and structural prestressing work
- Slope support and geotechnical reinforcement
- Project-specific connection and anchoring assemblies
TECHNICAL DATA
Specification & technical data
| Product classification | Bearing plate for high-strength threaded steel bars |
|---|---|
| Material / grade | Q235(Can be customized according to drawing specifications.) |
| Diameter / size | 20mm,25mm,32mm,36mm,40mm |
| Matched components | Precision-rolled threaded steel bars, precision-rolled threaded steel nuts, spiral reinforcement, high-strength steel rebar anchor plates. |
| Inspection documents | Factory Inspection Report |
| Packing & marking | Confirm according to product format and delivery plan |
No unverified mechanical value, certification or performance claim is published on this approval page. Request the current approved product chart and documents for your project.
INSTALLATION WORKFLOW
Installation & use workflow
- Confirm the structural or geotechnical design, product model and matched components.
- Inspect product identification, quantity and visible condition before installation.
- Install in accordance with the approved construction method and project requirements.
- Apply only the specified assembly, tightening, tensioning or grouting procedure.
- Complete the required inspection and installation records before acceptance.
Confirm the approved design, matched components and construction method before installation. Inspect product identification and visible condition before use.
