Application
Used with D15 tie rods for anchoring steel or aluminum formwork.
Steel Bars
Fine-Rolled Threaded Steel Bar
Continuous-thread steel bar for prestressing, structural connection, anchoring and geotechnical reinforcement.
PRODUCT OVERVIEW

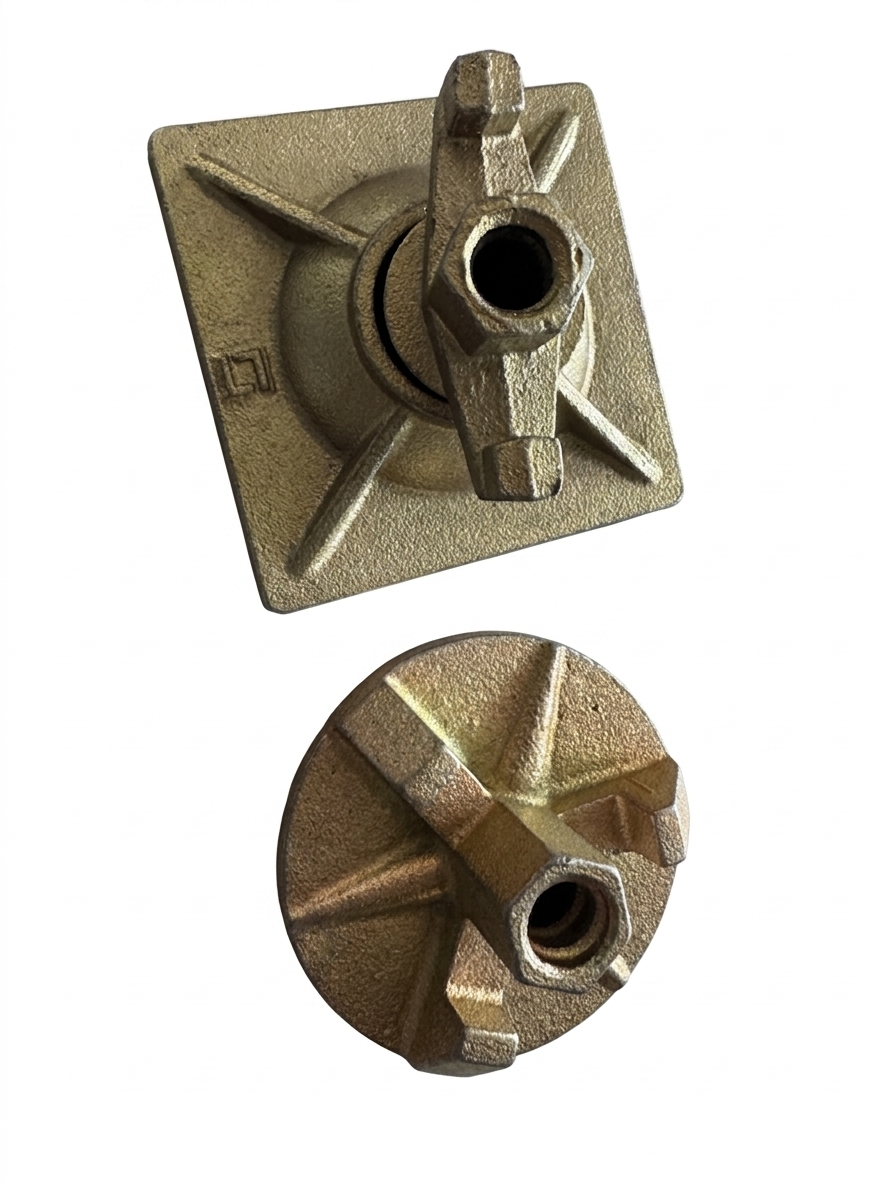

Round mountain nut, composite mountain nut
Used with D15 tie rods for anchoring steel or aluminum formwork.
Configuration
Component geometry, thread and surface condition matched to the selected bar system.
Specification
Final model and dimensions require drawing or sample confirmation.
Supply format
Cut length, surface condition, packing and marking confirmed for each order.
PRODUCT INFORMATION
Product description
Used with D15 tie rods for anchoring steel or aluminum formwork.
The hot-rolled tie rod features a tensile strength of 190–210 kN and meets the PSB930 high-strength standard; it is used in conjunction with wing nuts, water stops, and couplers to provide tensile anchoring as required by the project specifications.
APPLICATION SCOPE
Typical application scope
Used with D15 tie rods for anchoring steel or aluminum formwork.
- Precast Concrete Panels and Processing
- Tensile anchoring for steel formwork; tensile anchoring for aluminum formwork.
- Construction of pre-embedded foundation piles
- Project-specific connection and anchoring assemblies
TECHNICAL DATA
Specification & technical data
| Product classification | Formwork tie rods, hot-rolled tie rods |
|---|---|
| Material / grade | Cast iron or forged 45# steel |
| Diameter / size | #15,#20 |
| Matched components | Formwork tie rods, hot-rolled tie rods |
| Inspection documents | Factory Inspection Report |
| Packing & marking | Confirm according to product format and delivery plan |
No unverified mechanical value, certification or performance claim is published on this approval page. Request the current approved product chart and documents for your project.
INSTALLATION WORKFLOW
Installation & use workflow
- Confirm the structural or geotechnical design, product model and matched components.
- Inspect product identification, quantity and visible condition before installation.
- Install in accordance with the approved construction method and project requirements.
- Apply only the specified assembly, tightening, tensioning or grouting procedure.
- Complete the required inspection and installation records before acceptance.
Confirm the approved design, matched components and construction method before installation. Inspect product identification and visible condition before use.
