Application
Load transfer in approved structural, anchoring and formwork-related assemblies.
Steel Bars
Fine-Rolled Threaded Steel Bar
Continuous-thread steel bar for prestressing, structural connection, anchoring and geotechnical reinforcement.
PRODUCT OVERVIEW

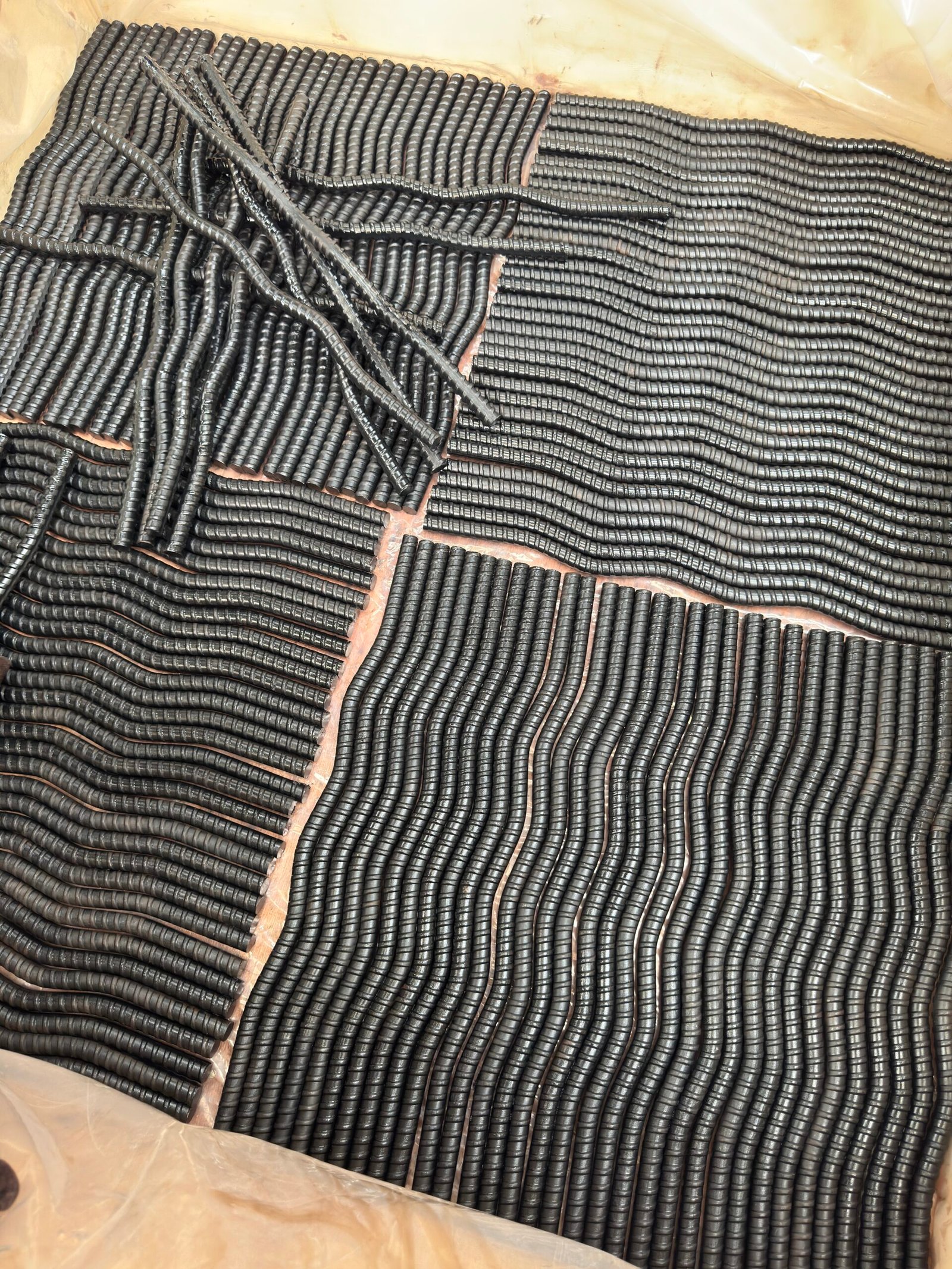

Serpentine rebar (wavy-shaped reinforcing bar)
Embedded components fabricated from 15/22/25-series thread bars for prestressing applications.
Configuration
Plate geometry, hole, thickness and surface condition matched to the project.
Specification
Material grade and dimensions to be confirmed before production.
Supply format
Cut length, surface condition, packing and marking confirmed for each order.
PRODUCT INFORMATION
Product description
Prestressing and embedded components fabricated in a serpentine or wavy shape from #15, #20 and #25 series threaded steel bars.
The supplied configuration should be selected together with the compatible nut, coupler, plate, anchorage and other required components. Selection is based on the approved drawing, applicable project specification and intended construction method.
APPLICATION SCOPE
Typical application scope
Project-specific prestressing, embedded connection and reinforcement assemblies.
- Foundation and underground engineering
- Bridge and structural prestressing work
- Slope support and geotechnical reinforcement
- Project-specific connection and anchoring assemblies
TECHNICAL DATA
Specification & technical data
| Product classification | Serpentine rebar |
|---|---|
| Material / grade | PSB500/PSB830/PSB930 |
| Diameter / size | #15#20#25 |
| Matched components | Using the product alone or in conjunction with on-site engineering construction drawings |
| Inspection documents | Factory Inspection Report |
| Packing & marking | Confirm according to product format and delivery plan |
No unverified mechanical value, certification or performance claim is published on this approval page. Request the current approved product chart and documents for your project.
INSTALLATION WORKFLOW
Installation & use workflow
- Confirm the structural or geotechnical design, product model and matched components.
- Inspect product identification, quantity and visible condition before installation.
- Install in accordance with the approved construction method and project requirements.
- Apply only the specified assembly, tightening, tensioning or grouting procedure.
- Complete the required inspection and installation records before acceptance.
Confirm the approved design, matched components and construction method before installation. Inspect product identification and visible condition before use.
PROJECT SUPPORT
Need a matched quotation?
Send the product name, drawing, specification, quantity, destination and required documents.
Get a QuoteOnline ConsultationProduct specifications may vary by project and destination. Always confirm the current data sheet and key parameters before ordering.
